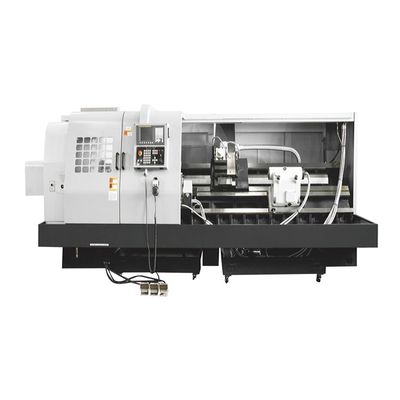

2020 machinery repair shops modelds CBK50 spindle slope bed CNC lathe machine with live tool

1 Unit
MOQ
$21,200.00(1 - 4 Units) $20,400.00(5 - 9 Units) $19,300.00(>=10 Units)
Prix
2020 machinery repair shops modelds CBK50 spindle slope bed CNC lathe machine with live tool
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Year: 2019
Max. Length of Workpiece (mm): 300
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 1620 r.p.m
Machining Capacity: Light Duty
Spindle Bore(mm): 82 m'm
Width of bed (mm): 200 mm
Spindle Motor Power(kW): 7.5
No. of Spindles: Single
Max. Turned Length (mm): 420
Number of Axes: 2
Travel (X Axis)(mm): 285 mm
Travel (Z Axis)(mm): 1000 mm
Positioning Accuracy (mm): 0.026/0.036mm
Repeatability (X/Y/Z) (mm): 0.01/0.013mm
Dimension(L*W*H): 2700*1800*1880mm
Model Number: BL-CBK50 63
Voltage: 380V
CNC Control System: GSK
Tool Post Stations: Vertical 4T/Horizontal 6T(opt.)
Weight (KG): 4900
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use
Key Selling Points: Competitive Price
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
Chuck size: 10''
Max. swing dia. over bed: 500mm
Max. swing dia. over saddle: 300mm
Max. turning dia.: 420mm
Max. turning length: 1000mm
Max. workpiece weight: 700
Spindle bore: 82mm
X axes travel: 285mm
Z axes travel: 1000mm
Tailstock quill dia./travel: 90/150mm
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Germany, Indonesia, Russia, South Africa
Max. Swing Diameter (mm): 500
Certification: CE ISO
Informations de base
Certification: CE ISO
Model Number: BL-CBK50 63
Conditions de paiement et expédition
Packaging Details: Plywood case(FCL Shipping)/Steel pallet(LCL Shipping)
Supply Ability: 500 Set/Sets per Year
Description de produit
■ 45°slant bed, hard box guideway
■ Bed adopt China best high strength compound resin sand cast iron
■ Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
■ Aging treatment,has good vibration absorption and rigidity
■ Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
■ Spindle use high precision bearing
■ Adopt 3 class gear box,suitable for heavy turning.
Item
Specification
Unit
BL-CBK50
BL-CBK63
Capacity
Bed slant angle
°
45°
45°
Max. swing dia. over bed
mm
Φ500
Φ630
Max. swing dia. over saddle
mm
Φ300
Φ445
Max. turning dia.
mm
Φ420(Vertical 4T tool turret)
Φ500(Vertical 4T tool turret);
Φ400(Horizontal 8T tool turret)
Max. turning length
mm
1000(Vertical 4T tool turret)
1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal 8T tool turret)
Max. workpiece weight
kg
700(10’’ manual chuck)
1200(12’’ manual chuck)
Spindle
Spindle bore
mm
Φ82
Φ84
Spindle type
/
A2-8
A1-11(manual chuck);A2-8(hydraulic chuck)
Spindle speed
rpm
H:162~1620 M:66~660 L:21~210
Manual 3 class gears, stepless in every class
L:20~210 M:50~525 H:155~1600
Manual 3 class gears, stepless in every class
Spindle motor power
kw
7.5
11
Chuck size
/
10’’
12’’
X/Z axes
X axes travel
mm
285(Vertical 4T tool turret)
350(Vertical 4T tool turret);
270(Horizontal 8T tool turret)
Z axes travel
mm
1000(Vertical 4T tool turret)
1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal 8T tool turret)
X/Z axes motor
kw
/
2.5/2.5(FANUC)
X axes ball screw O.D.
mm
Φ32
Φ32
Z axes ball screw O.D.
mm
Φ40
Φ50(1000mm)/50(2000mm)/63(3000mm)
X axes ball screw pitch
mm
5
5
Z axes ball screw pitch
mm
6
6(1000mm)/6(2000mm)/8(3000mm)
X/Z axes rapid moving speed
m/min
6/8
8/8
Tool turret
Tool turret type
/
Vertical 4T/Horizontal 6T(opt.)
Vertical 4T/Horizontal 8T(opt.)
Toolshank size
mm
25×25
32×32
Tailstock
Tailstock quill taper
/
MT5#
MT5#
Tailstock quill dia./travel
mm
Φ90/150
Φ100/150
Others
X/Z axes positioning accuracy
mm
0.026/0.036
X axes≤0.026mm
Z axes≤0.036(1000mm);0.040mm(2000mm);
0.048mm(3000mm)
X/Z axes repeated positioning accuracy
mm
0.01/0.013
X axes≤0.007mm
Z axes≤0.009(1000mm);0.014mm(2000mm);
0.020mm(3000mm)
X/Z axes positive and negative difference
mm
0.011/0.016
0.012/0.016
Turning workpiece roundness
mm
0.004
0.004
Overall size
mm
2700×1800×1880
2720/3980/5050×1800×1890
N.W.
kg
4900
5000/5500/7500
Item
Brand
Spindle bearing
CHINA TOP-CSC/ZWZ/HRB
Ball screw bearing
CHINA TOP-CSC
Ball screw
CHINA top
Chuck&cylinder
TAIWAN/KOREA
Lubrication pump
JAPAN-LUBE
Product Category
About Us
Packing & Shipping
Q1.Are you manufacturer or trading company? A. We are professional machine tool manufacturer, we have total 3 manufacturers in CHINA and set export sales center & showroom in NINGBO city. Q2. How about your price? A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions. Q3. Can you provide training for operation CNC machines? A.Yes, free training in our factory is available. Q4. What's your warranty terms? A. We will supply a replacement for parts that prove to be defective for a period of one year (3 years for SIEMENS parts) , starting from one month after shipping date. Please contact us for more details. Q5.Do you have CE certificate? A. Yes,we have. Q6. What’s the delivery time & package? A.Depends on machine model and configuration. Normally not more than 45days. Please contact us to confirm. All our CNC machines are packed with sea worthy package. Q7.What is MOQ? A.1 Unit.
