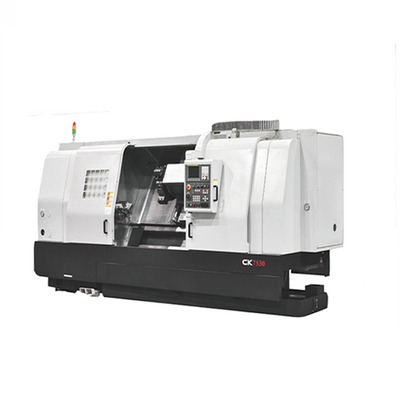

China Automatic Standard Series Machine Repair Shops Slant Bed CNC Lathe Machine Center Metal Turning

1 Unit
MOQ
$76,700.00(1 - 4 Units) $73,200.00(5 - 9 Units) $70,000.00(>=10 Units)
Prix
China Automatic Standard Series Machine Repair Shops Slant Bed CNC Lathe Machine Center Metal Turning
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Year: 2019
Max. Length of Workpiece (mm): 470 mm
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 2500 r.p.m
Machining Capacity: Light Duty
Spindle Bore(mm): 105 m'm
Width of bed (mm): 400 mm mm
Spindle Motor Power(kW): 22/30(FANUC)
No. of Spindles: Single
Max. Turned Length (mm): 600
Number of Axes: 2
Travel (X Axis)(mm): 325 mm mm
Travel (Z Axis)(mm): 880 mm mm
Positioning Accuracy (mm): 0.009 0.01(800mm); 0.018(1500/2000mm)
Repeatability (X/Y/Z) (mm): 0.004 0.005(800mm); 0.007(1500/2000 mm)
Dimension(L*W*H): 3820/4820/5320*2120*2160mm
Model Number: BL-CK7530
Voltage: 380V
CNC Control System: FANUC
Tool Post Stations: 8/12station
Weight (KG): 8330
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use
Key Selling Points: Competitive Price
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
Chuck size: 12''
Max. machining dia.(disc type): 670mm
Max. machining dia.(shaft type): 470mm
Max. turning length: 800mm
Max. bar through dia: 600mm
Max. workpiece weight: 900kg
Spindle type: A2-8
X axes travel: 325 mm
Z axes travel: 880mm
X/Z axes rapid moving speed: 12/16m/min
Max. Swing Diameter (mm): 670 mm
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certification: CE ISO
Informations de base
Certification: CE ISO
Model Number: BL-CK7530
Conditions de paiement et expédition
Packaging Details: Plywood case(FCL Shipping)/Steel pallet(LCL Shipping)
Supply Ability: 500 Set/Sets per Year
Description de produit
■ Monoblock slant bed
■ HARD BOX guideway, high rigidity, heavy-duty type, suitable for long axes heavy cutting
■ CHINA top quality,high stability
■ Adopt FANUC controller
Item
Specification
Unit
BL-CK7516A
BL-CK7520A
BL-CK7525A
BL-CK7530
BL-CK7550
Capacity
Bed slant angle
°
45°
45°
45°
60°
60°
Max. swing dia. over bed
mm
Φ400
Φ450
Φ500
Φ550
Φ670
Φ850
Max. swing dia. over saddle
mm
Φ260
Φ320
Φ370
Φ470
Φ600
Max. turning length
mm
1000
1000/1500
1000/1500
800/1500/2000
1500/2000/3000
Max. turning dia.
mm
Φ285
Φ370
Φ450
Φ600/550(Electric/Hydraulic tool turret)
Φ750
Max. workpiece weight
kg
360(6’’ chuck); 550(8’’ chuck)
550(8’’ chuck);
700(10’’ chuck)
700(10’’ chuck);
900(12’’ chuck)
900(12’’ chuck);
2000(15’’/18’’chuck)
3000(21’’ chuck)
Spindle
Spindle bore
mm
Φ57
Φ62
Φ87
Φ87
Φ105
Φ135
Spindle type
/
A2-5
A2-6
A2-8
A2-8
A2-8
A2-11
Spindle speed
rpm
80~3500
75~2500
75~1500
100~2000
25~2500
(opt.: reduction box L:12-830 H:50-2500)
L:8-530 H:30-1200
(Reduction box)
Chuck size
/
6’’
8’’
10’’
10’’
12’’
21’’
Max. bar through dia.
mm
Φ42
Φ51
Φ73
Φ73
Φ90
/
Spindle motor power
kw
7.5/11
15
18.5
22/30(FANUC α)
30/37(FANUC α)
X/Z axes
X axes travel
mm
165
210
250
325
385
Z axes travel
mm
1030
1010/1550
1010/1550
880/1550/2050
1540/2040/3050
X/Z axes ball screw O.D.
mm
Φ28/40
Φ32/40(1000mm);
50(1500mm)
Φ32/40(1000mm);
50(1500mm)
/
/
X/Z axes rapid moving speed
m/min
12/16
12/16
12/16
12/16
10/12
X/Z axes motor torque
Nm
11/20(FANUC β)
11/20(FANUC β)
20/20(FANUC β)
12/22(FANUC α)
Tool turret
Tool turret type
/
8/12 station
8/12 station
8/12 station
8/12 station
8/12 station
Toolshank size
mm
20×20, Φ32
25×25, Φ40
25×25, Φ40
32×32, Φ50
32×32, Φ63
Tailstock
Tailstock quill taper
/
MT4#
MT5#
MT5#
MT6#
MT6#
Tailstock quill dia./travel
mm
Φ70/80
Φ90/100
Φ100/100
Φ110/150
Φ150/150
Others
X axes positioning accuracy
mm
0.009
0.009
0.009
0.009
0.009
Z axes positioning accuracy
mm
0.013
0.013(1000mm);
0.018(1500mm)
0.013(1000mm);
0.018(1500mm)
0.01(800mm);
0.018(1500/2000mm)
0.018(1500/2000mm);
0.022(3000mm)
X axes repeated positioning accuracy
mm
0.004
0.004
0.004
0.004
0.004
Z axes repeated positioning accuracy
mm
0.006
0.006(1000mm);
0.007(1500mm)
0.006(1000mm);
0.007(1500mm)
0.005(800mm);
0.007(1500/2000
mm)
0.007(1500/2000mm); 0.008(3000mm)
X axes positive and negative difference
mm
0.004
0.004
0.004
0.004
0.004
Z axes positive and negative difference
mm
0.009
0.009
0.009
0.007(800mm);
0.009(1500/2000mm)
0.009(1500/2000mm);
0.012(3000mm)
Turning workpiece roundness
mm
≤0.0025
≤0.004
≤0.004
≤0.004
≤0.004
Total power
KVA
35
30
35
60
75
Overall size
mm
3200×1700×1970
3790/4600×1850×2050
3790/4600×1850×2050
3820/4820/5320×2120×2160
5420/5870/7360×2800×2770
N.W.
kg
4500
5000/6700
5000/6700
8330/9730/12000
14000/16000/20000
Item
Brand
Spindle bearing
NSK(CK7516A/7520A/7525A);
SKF(CK7530);FAG(CK7550)
Ball screw bearing
NSK/FAG
Ball screw
CHINA top(CK7516A/7520A/7525A, opt:JAPAN THK);
JAPAN THK(CK7530/7550)
Chuck&cylinder
TAIWAN/KOREA
Tool turret
TAIWAN LIO SHIING/ITALY DUPLOMATIC
Lubrication pump
JAPAN-LUBE
