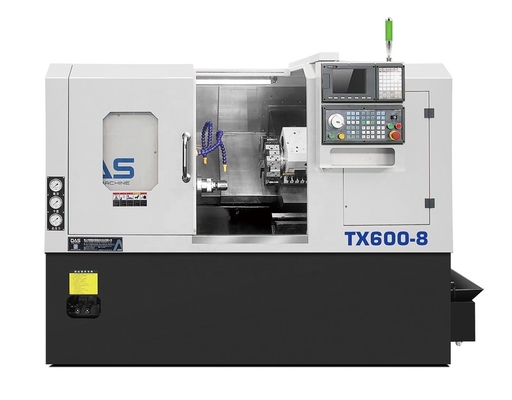

Spare Part TX600-8 CNC Lathe Machine Metal Lathe Aluminum Turret with Tailstock CNC Lathe

1.0 Sets
MOQ
Spare Part TX600-8 CNC Lathe Machine Metal Lathe Aluminum Turret with Tailstock CNC Lathe
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: TURNING CENTER
Year: least date
Max. Length of Workpiece (mm): 0 mm
Max. Spindle Speed (r.p.m): 4500 r.p.m
Machining Capacity: Medium Duty
Max. Weight of Workpiece(kg): enquiry us
Spindle Bore(mm): 0 m'm
Width of bed (mm): 0 mm
Spindle Motor Power(kW): enquiry us
No. of Spindles: single
Max. Turned Length (mm): 0
Number of Axes: 3
Travel (X Axis)(mm): 180 mm
Travel (Z Axis)(mm): 400 mm
Positioning Accuracy (mm): enquiry us
Repeatability (X/Y/Z) (mm): 0.001
Dimension(L*W*H): 3200*1650*2000 mm
Model Number: TX600-8
Voltage: 220V/380V,50HZ
CNC Control System: GSK/Fanuc/Syntec
Toolpost Brand: enquiry us
Tool Post Stations: enquiry us
Weight (KG): 3800
Warranty: 1 Year
Applicable Industries: Aluminum spare part
Key Selling Points: Long Service Life
Showroom Location: Egypt, Turkey, Viet Nam, Brazil, Indonesia, Russia
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: enquriy us
CNC or Not: CNC
Automatic Grade: Automatic
After-sales Service Provided: Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
OEM: Accept
Power(W): 20 KW
Max. Swing Diameter: 550
Weight: 3800 KG
CNC Controller: GSK/Fanuc/Syntec
Chuck: 10 inch
Max. Swing Diameter (mm): 550 mm
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Turkey, Viet Nam, Brazil, Indonesia, Russia, Malaysia, Ukraine
Certification: CE ISO
Informations de base
Certification: CE ISO
Model Number: TX600-8
Conditions de paiement et expédition
Packaging Details: Plastic stretch film for the first layer, EPE packaging film for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box. lathe turret
Supply Ability: 200 Set/Sets per Month lathe turret
Description de produit
Product Description

Ramp-type CNC Lathe ( Knife tower and tailstock )

- Machine tool control system uses Taiwan SYNTEC 21TA system. Other company's numeral control system can also be used when user requires so.





- Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.





- Machinable long axial and big plate of products; Easy machining operation; a tool holder can be provided for thin long material.



Name TX600-6 TX600-8 TX600-10
The style of installation tool 10 position knife tower 12 position knife tower 12 position knife tower
Adjacent tool change time (s) 0.4 0.4 0.4
Tool change style Rotate Rotate Rotate
Square knife knife holder (mm) 25×25 25×25 25×25
Round hole knife holder (mm) φ25 φ32 φ32
With chuck size 6 Inch 8 Inch 10 Inch
Spindle speed (r/min) 45-4500 45-4500 45-3200
Spindle bore (mm) φ56 φ66 φ86
Center height (mm) 80 120 120
The maximum diameter of rotation (mm) 500 550 550
Spindle motor power (KW) 7.5 11 15
Minimum system Resolution 0.001 0.001 0.001
X/Z Axis stroke (mm) 200/350 250/650 250/650
X/Z axis fast moving speed (m/min) 26(Factory setting) 26(Factory setting) 26(Factory setting)
X/Z axis Repetitive positioning accuracy (mm) ±0.003 ±0.003 ±0.003
Taper (mm) ≤0.003/100mm ≤0.003/100mm ≤0.003/100mm
Card position size (mm) ≤0.003 ≤0.003 ≤0.003
X servo-motor (KW) 1.8 1.8 1.8
Z servo-motor (KW) 1.8 1.8 1.8
Hydraulic station (KW) 1.5 1.5 1.5
Water tank motor power (KW) 180W 180W 180W
Cooling water tank capacity (L) 100 100 100
Power (KW) 11 15 20
Weight (KG) 3500 3800 3800
Size (L*W*H  mm) 2400x1650x1750 3200*1650*2000 3200*1650*2000
