Condition:
New
Type:
Horizontal
Year:
2020
Max. Length of Workpiece (mm):
120
Structure:
Slant Bed Lathe
Max. Spindle Speed (r.p.m):
4500 r.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
50
Width of bed (mm):
360 mm
Spindle Motor Power(kW):
5.5
No. of Spindles:
Twin
Max. Turned Length (mm):
360
Number of Axes:
3
Travel (X Axis)(mm):
380 mm
Travel (Z Axis)(mm):
300 mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.001
Dimension(L*W*H):
2080*1460*1650mm
Model Number:
H36W
Voltage:
220V
CNC Control System:
GSK
Toolpost Brand:
Hydex
Tool Post Stations:
8, 4
Weight (KG):
2000
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
Key Selling Points:
High-accuracy
Showroom Location:
Canada, United States, Philippines, Saudi Arabia, Russia, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Australia, None
Marketing Type:
Hot Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Gear, Engine, Gearbox
Machine Type:
cnc machine lathe
Product type:
mini cnc machine price
Name:

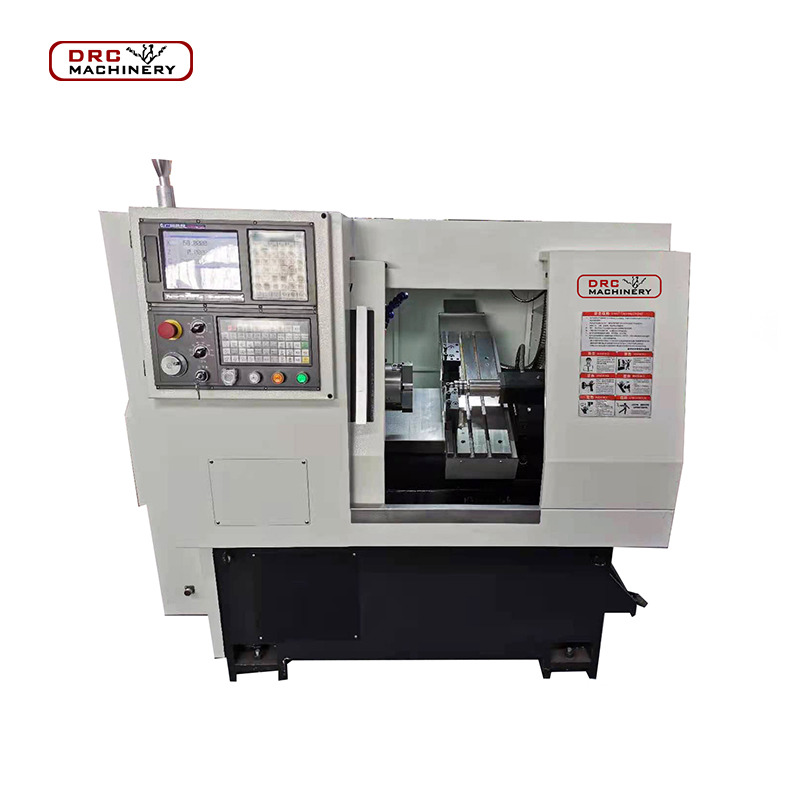

Automatic bar feeder slant bed cnc lathe machine
Max swing diameter over bed:
360mm
Maximum swing over slde:
120mm
Function:
turning, milling and other machining
Control system:
SIEMENS FANUC and other customer request
Diameter of spindle through hole:
60mm
Power:
5.5KW
FANUC system cnc turning lathe:
Lathe machine manufacturer
