Lathe and Center Universal CNC Lathe Milling Turning Machine for Metal TC-46

1.0 Sets
MOQ
Lathe and Center Universal CNC Lathe Milling Turning Machine for Metal TC-46
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Application: Lathe and Turning Center
Condition: New
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Dimension(L*W*H): 2230mm*1980mm*2130mm
Weight: 2500KG
Warranty: 1 Year
Showroom Location: None
Core Components: Engine, Bearing, Motor
System: Syntec/Mitsubishi/Fanuc/Siemens
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Free spare parts
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certification: CE
Informations de base
Certification: CE
Conditions de paiement et expédition
Packaging Details: Each piece is wrapped with stretch film and packed in a wooden case.
Supply Ability: 1000 Set/Sets per Month
Description de produit
Product Overview

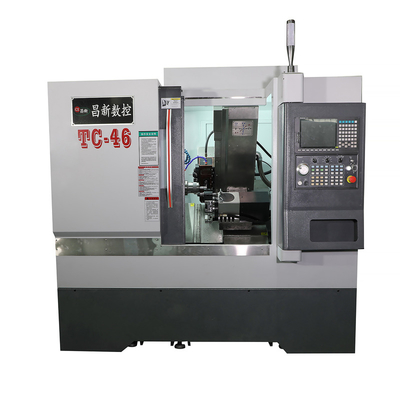

Universal CNC Milling Turning Lathe Machine for Metal TC-46
PRODUCT SPECIFICATIONS
Name
Models and specifications
Brand
Power (KW)
Description
Control System
F01-22TB-STD
Syntec
C-axis motor and drive (spindle)
S08-M09-06C4-0B0
Syntec
6.6KW-8.2KW
X axis motor and drive
S08-AM11-40B-F3
Syntec
2.4KW
Z axis motor and drive
S08-AM11-40-F3
Syntec
2.4KW
Y axis motor and drive
S08-AM5-40B-F3
Syntec
1.1KW
A axis motor and drive
S08-AM8-40-F3
Syntec
1.7KW
B axis motor and drive
S08-AM5-40-F3
Syntec
1.1KW
Magnetic ring encoder
S08-GSKM-242-S
Syntec
Precision spindle
A2-5
Kin Chun
X axis ball screw
3208 end plug double nut
Hiwin,PMI,King
Z axis ball screw
3208 end plug double nut
Hiwin,PMI,King
X axis ball guide
30MM
Hiwin,PMI,HTPM
Z axis ball guide
30MM
Hiwin,PMI,HTPM
Power Head
4+4+4Y
Xu Teng
Turret
Type 63 eight-station turret
Usta
Rotary cylinder
TF-646
Zhongyi
Spindle V-belt
UNITTA XPZ1222
A set of 4
Automatic lubrication system
BE2232F-210X
One hydraulic station assembly
Taiwan VP20 vane pump, solenoid valve, pressure reducing valve, air-cooled heat dissipation, pressure adjustment 0.4-3.5MPa, tank
installed 46# Great Wall anti-wear hydraulic oil 30KG
Cooling system
Capacity 900X290X150 water tank
Machine cover
Cold plate production, surface powder spraying treatment
Electrical components
Fully equipped with Schneider electric and air switch
Accessories
Spring chuck seat - 1pcs
Collet - 2pcs Tie rod -1pcs
ER25 nut - 12pcs
ER25 collet - 12pcs
450W water tank - 1set
Lathe controller operation manual -1pcs
Lathe program manual -1pcs
Servo drive manual -pcs
CNC Lathe Parameters and Precision Table
S.N.
Items
Unit
Specifications
1
Through hole of barrel spindle unit
mm
Φ56
2
Maximum turning diameter of bed
mm
Φ520
3
Spindle
Spindle end face form
A2-5
4
Spindle maximum speed
r/min
5000
5
Spindle set speed
r/min
1-4000
6
Maximum bar diameter
mm
Φ45
7
Height of worktable and spindle center
mm
85
8
Bed inclination
degree
35°
9
X effective stroke
mm
1050
10
Z effective stroke
mm
450
11
X/Z axis rapid traverse setting speed
mm
24
12
X/Z axis screw
mm
3208
13
X/Z axis linear guide
mm
30
14
Machine size (length×width×height)
mm
2230*1980*2130
15
Machine weight
KG
3500
Machine Accuracy
S.N.
Main inspection items
Precision
1
Roundness of workpiece
0.003mm
2
Precision
0.005mm
3
Cylindricity of workpiece
0.012/200mm
4
X/Z axis repeat positioning accuracy
0.005mm
5
X/Z axis absolute positioning accuracy
0.005mm
6
Spindle index repeat positioning accuracy
≤20 arc seconds, ie 0.006°
7
Absolute positioning accuracy of spindle indexing
70 arc seconds, or 0.02°
8
Rail precision grade
P
9
Screw precision grade
C3 level
10
Cone runout of collet
≤0.015mm
11
Spindle radial runout
0.0025mm
PRODUCT CONFIGURATION
Spindle
Milling Tools
8 Station Turret
Control Panel
Water Tank
Electric Box
FAQ
1.Payment term
After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
2. Arrange production
Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days.
3. Package
we recommend you to choose wooden box packing to avoid damage during the transportation.
4. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
5.Warranty time
One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals.
12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
