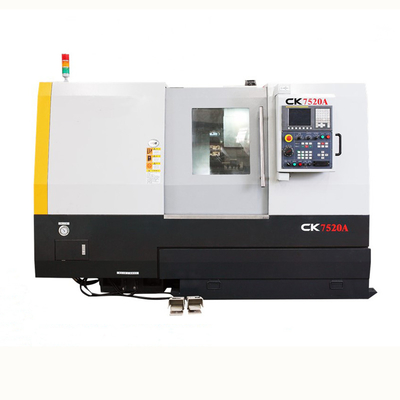

Building Material Stores Slope Bed CNC Turn CK7520 SERIES CNC TURNS Metallurgical Machinery

slant bed cnc lathe CK7520 SERIES CNC LATHES metalworking machines

Main Functions:

CK7516 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 828D, DASEN and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.

Main Machine:

Main specification:

STANDARD ACCESSORIES:
1.FANUC 0I MATE-TD NC controller;
2.Hydraulic chuck;
3.Hydraulic tailstock;
4.12-station turret;
5.AC servo spindle motor;
6, FANUC X,Z axis servo motor;
7, full enclosed splash guard;
8, air conditioner for electric cabinet.
9, Auto lubrication system;
10, Auto coolant system;
11, work light;
12. installation damping pads;
13,technical documents;

OPTIONAL ACCESSORIES:
1, chip converyor

Machine details:

Workshop:
