Condition:
New
Type:
Horizontal
Year:
2019
Max. Length of Workpiece (mm):
520 mm
Structure:
Slant Bed Lathe
Max. Spindle Speed (r.p.m):
5000 r.p.m
Machining Capacity:
Light Duty
Spindle Bore(mm):
56 m'm
Width of bed (mm):
200 mm
Spindle Motor Power(kW):
7.5
No. of Spindles:
Single
Max. Turned Length (mm):
520
Number of Axes:
2
Travel (X Axis)(mm):
180 mm
Travel (Z Axis)(mm):
420 mm
Positioning Accuracy (mm):
0.005 mm
Repeatability (X/Y/Z) (mm):
0.002
Dimension(L*W*H):
1900*1460*1560mm
Model Number:
BL-S40/50
Voltage:
As requirement
CNC Control System:
Siemens
Toolpost Brand:
Pragati
Tool Post Stations:
8
Weight (KG):
2700
Warranty:
1 Year
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Home Use
Key Selling Points:
High Productivity
Showroom Location:
None
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
After-sales Service Provided:
Engineers available to service machinery overseas, Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Name:

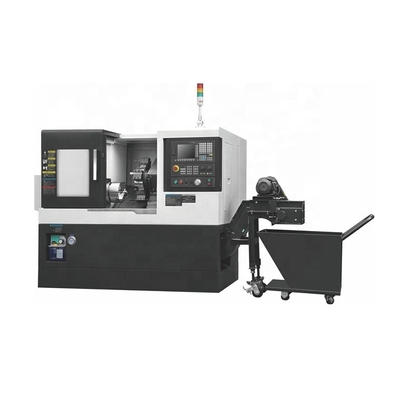

BL-S40 Slant Bed Cnc Lathe
Max. swing dia. over bed:
500mm
Max. swing diameter over slide board:
275MM
Max.effective turning length:
320MM
spindle bore:
56/62
spindle type:
A2-5/A2-6
Turret type:
servo
Chuck size:
6''/8''
Machining roughness:
IT6
Max. Swing Diameter (mm):
550 mm
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Certification:
CE,ISO
