Condition:
New
Type:
TURNING CENTER
Max. Length of Workpiece (mm):
1000
Max. Spindle Speed (r.p.m):
1600 r.p.m
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
90
Width of bed (mm):
400 mm
Spindle Motor Power(kW):
7.5
No. of Spindles:
Twin
Number of Axes:
2
Travel (X Axis)(mm):
310 mm
Travel (Z Axis)(mm):
1000 mm
Repeatability (X/Y/Z) (mm):
±0.005
Model Number:
UCK6152E
Voltage:
220V/380V/400V/440V
CNC Control System:
GSK
Toolpost Brand:
Hongda
Tool Post Stations:
8, 10, 6, 4
Weight (KG):
3150
Warranty:
1 Year
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction worksÂ
Key Selling Points:
Automatic
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor

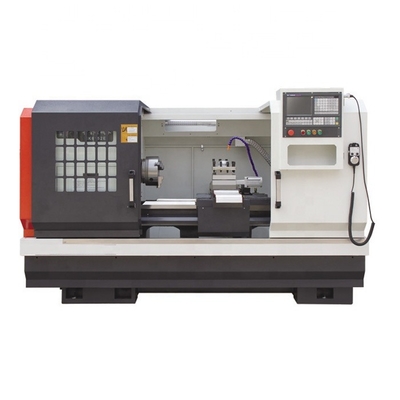

Machine Type:
Flat Bed CNC Lathe
Max. swing over bed:
530mm
Max. swing over cross slide:
300 mm
Max. processing length:
825/1325/2000/3000mm
Spindle speed:
30-150,90-450, 315-1600rpm
Spindle bore:
90mm
Spindle motor:
7.5kw
Tool-post:
4-station electric turret
chuck size:
250mm
tailstock diameter:
75mm
After-sales Service Provided:
Online support, Video technical support, Free spare parts
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Certification:
CE ISO9001
