Aperçu /Produits/Machine à tour CNC à lit plat/Construction Material Stores CK6140 CNC Lathe Precision Metal Turning Horizontal Lathe Factory CNC Lathe Machine Flat Bed Direct Supply

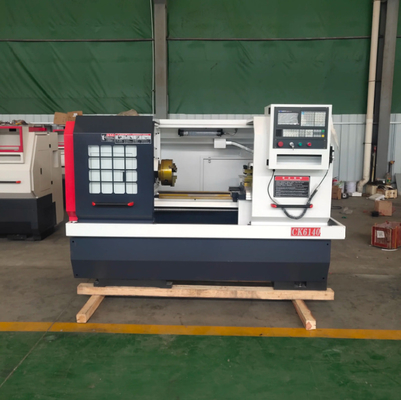

Construction Material Stores CK6140 CNC Lathe Precision Metal Turning Horizontal Lathe Factory CNC Lathe Machine Flat Bed Direct Supply

1 set
MOQ
Construction Material Stores CK6140 CNC Lathe Precision Metal Turning Horizontal Lathe Factory CNC Lathe Machine Flat Bed Direct Supply
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Year: 2022
Max. Length of Workpiece (mm): 750
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 1600 r.p.m
Machining Capacity: Heavy Duty
Max. Weight of Workpiece(kg): 500
Spindle Bore(mm): 320
Width of bed (mm): 1250 mm
Spindle Motor Power(kW): 5.5
No. of Spindles: Twin
Max. Turned Length (mm): 400
Number of Axes: 2
Travel (X Axis)(mm): 210 mm
Travel (Z Axis)(mm): 600 mm
Positioning Accuracy (mm): 0.001
Repeatability (X/Y/Z) (mm): ±0.001
Dimension(L*W*H): 2170*1250*1700
Model Number: CK6140
Voltage: 380V
CNC Control System: FANUC
Toolpost Brand: Hongda
Tool Post Stations: 6
Weight (KG): 1800
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Restaurant, Retail
Key Selling Points: High Productivity
Showroom Location: Egypt, Canada, Turkey, United Kingdom, France, Germany, Philippines, Indonesia, Russia, South Korea, Romania, Nigeria
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear
Informations de base
Model Number: CK6140
Conditions de paiement et expédition
Packaging Details: LCL wooden packing
Description de produit
Product Description
Detailed Specification:
1. The machine tool box of the head of a bed and lathe bed. The tailstock. The plate and so on various joint surface between manual scraping the inquiry, the whole machine adopts the imported laser interferometer for testing, testing equipment, lenny shaoxing effective guarantee of the Z axis. The X axis positioning accuracy, repeat positioning accuracy, backlash and the stability of the machine tool.
2. The machine adopts high strength cast iron, and the special material of copper and chromium is added, the width of the bed guide rail is 312mm, the depth of the bed guide rail is reached 3mm, which effectively improves the wearability and stability of the machine tool.
3. The machine adopts Japanese valley centralized lubrication, headstock lubrication with Taiwan proton cycloidal pump
circulation forced lubrication, against the south hot weather, to ensure the cleanliness and the cooling characteristics of
headstock, effectively prolong the service life of bearing and gear.
4. The main shaft of the machine is used for the bearing of the tile shop, the spindle pass hole phi 52mm, the machine tool gear adopts precision grinding, which improves the rigidity of the gear and reduces the noise of the machine tool.
5. The machine tool USES the hanjiang ball screw, the z-axis ball screw, the X-axis ball screw to adopt the drawing structure, and improve the accuracy of the outer circle and inner hole dimensions of the workpiece.
6. The machine tool adopts changzhou four station to avoid the electric tool holder.Handle size: 20x20mm.Optional 6 station electric tool holder.
Specification
item
value
Condition
New
Type
Horizontal
Flat Bed Lathe
Year
2022
Max. Length of Workpiece (mm)
750/1000
Max. Spindle Speed (r.p.m)
1600r.p.m
Machining Capacity
Heavy Duty
Max. Weight of Workpiece(kg)
500
Spindle Bore(mm)
320 m'm
Width of bed (mm)
1250mm
Spindle Motor Power(kW)
5.5
No. of Spindles
Twin
Max. Turned Length (mm)
400
Number of Axes
2
Travel (X Axis)(mm)
210mm
Travel (Z Axis)(mm)
600mm
Positioning Accuracy (mm)
0.001
Repeatability (X/Y/Z) (mm)
±0.001
Place of Origin
China
Jiangsu
Dimension(L*W*H)
2170*1250*1700
Brand Name
Ipretech
Model Number
CK6140
Voltage
380V
CNC Control System
FANUC
Toolpost Brand
Hongda
Tool Post Stations
6
Weight (KG)
1800
Warranty
1 Year
Applicable Industries
Building Material Shops, Manufacturing Plant, Farms, Restaurant, Retail
Showroom Location
Egypt, Canada, Turkey, United Kingdom, France, Germany, Philippines, Indonesia, Russia, South Korea, Romania, Nigeria
Marketing Type
New Product 2022
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Gear
1. The major parameters specs:
2. Machine Bed Max.Swing Dia: 400mm
3. blade carrier Max. Swing Dia: 220mm
4. Max. Workpiece length: 750/1000mm
5. guide rail width: 312mm
6. spindle through-hole dia: 52mm
7. spindle speed range (r.p.m) two gear and infinitely variable speed: 21-1600
8. underdrive: 30-300r/min
9. high-gear:10-1600r/min
10. spindle speed change mode: manual
11. spindle telos model: ISO(GB)C6
12. spindle frond bore hole: MT6
13. Spindle power: 5.5KW
14. Spindle motor: VF/Servo
15. NC blade carrier: four-station
o.tool shade size: 20*20mm
3. blade carrier reposition accuracy: +/-3.2”
4. X axis travel: 210mm
5. Z axis travel: 600/850mm
s.X axis moving speed: 4000mm/min, Z axis moving speed: 6000mm/min
t.feeding speed range X axis: 1-2000mm/min Z: 1-2000mm/min
1. min setting unit: 0.001mm
2. tailstock sleeve dia: 60mm
3. tailstock sleeve travel: 100mm

x.tailstock sleeve bore-hole taper: MT4
1. coolant motor power: 90W
2. coolant pump lift: 5m

1.coolant pump flow: 25L/min
2. machine overal size (750mm):2170*1250*1700mm, machine weight: 1800kgs
3. machine overal size (1000mm):2410*1250*1700mm, machine weight: 2100kgs
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance. Under the leadership of our boss Mr.JiaYi, the company has gained two systems ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top cnc machine manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech republic, Hungary and the United Kingdom. Ipretech Machinery business philosophy are keeping R&D, 5S production, Integrity management, Dedicated Service" all the ipretech staff are devoting ourselves into company innovation,production and developing.Ipretech machinery have been worked together with many new high-tech enterprise, several colleges and universites. Such as THU Tsinghua University, Nanjing SouthEast University, Wuhan university of science and technology.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Domestic Market(40.00%),North America(20.00%),Western Europe(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cnc lathe,EDM WIRE CUT,EDM Small hole dirll,EDM Erosion die sinking,CNC Milling Machine,Metal engraving machine

4. why should you buy from us not from other suppliers?
Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of all kinds of edm wirecut, drill, die sinking

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
