Aperçu /Produits/Machine à tour CNC à lit plat/Machine repair shops made in china top quality price cnc lathes flat bed cnc lathes for sale ck6140

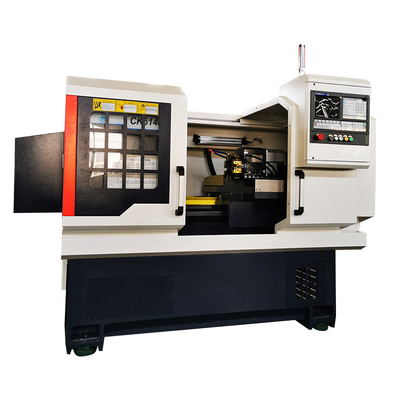

Machine repair shops made in china top quality price cnc lathes flat bed cnc lathes for sale ck6140

1 Set
MOQ
$9,900.00(1 - 4 Sets) $9,800.00(5 - 14 Sets) $9,600.00(>=15 Sets)
Prix
Machine repair shops made in china top quality price cnc lathes flat bed cnc lathes for sale ck6140
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Max. Length of Workpiece (mm): 650
Structure: Flat Bed Lathe
Max. Spindle Speed (r.p.m): 2000 r.p.m
Machining Capacity: Medium Duty
Spindle Bore(mm): 48
Width of bed (mm): 400 mm
Spindle Motor Power(kW): 5.5
No. of Spindles: Single
Number of Axes: 2
Travel (X Axis)(mm): 280 mm
Travel (Z Axis)(mm): 750 mm
Positioning Accuracy (mm): ±0.005
Repeatability (X/Y/Z) (mm): ±0.005
Dimension(L*W*H): 220*1160*1620
Model Number: CK6140
Voltage: 220V/380V
Tool Post Stations: 8
Weight (KG): 1900
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops
Key Selling Points: Competitive Price
Showroom Location: None
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Product name: Flat bed CNC lathe
brand: ACR
source area: shandong,China
sea harbour: Any port in China
Informations de base
Model Number: CK6140
Conditions de paiement et expédition
Packaging Details: wooden case
Supply Ability: 50 Set/Sets per Month
Description de produit
Product Description
Specification
size
220*1160*1620
Max. Swing over bed /MM
400
Max. Swing over carriage /MM
240
Max. length of work piece/ MM
650
Width of bed /MM
400
Section of turning tool /MM
20*20
Spindle speeds /RMP
2000
Hole through spindle MM
48
Spindle taper
No
Chuck size MM
200
X Max.axis travel/MM
280
Z Max.axis travel/MM
750
Spindle transmission type
Manual 3steps(Optional:stepless)
Tailstock sleeve travel/MM
100
X/Z axis repeatability/MM
±0.005
Spinsle motor/KW
5.5
Weigh/KG
1900
Company Introduction
Workshop
Exhibition
Certificate
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Payment & Delivery
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
