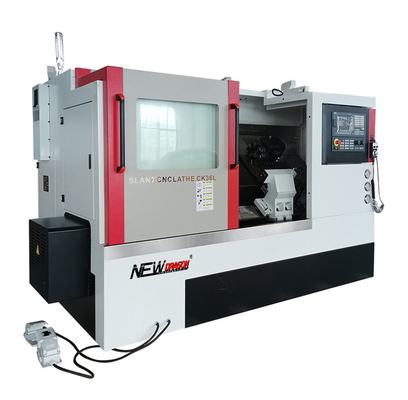

Machinery Repair Shops CK36L High Precision Mini Slant Bed CNC Lathe Machine For Metal

1 Set
MOQ
$15,229.00(1 - 1 Sets) $15,000.00(>=2 Sets)
Prix
Machinery Repair Shops CK36L High Precision Mini Slant Bed CNC Lathe Machine For Metal
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Max. Length of Workpiece (mm): 500
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 4500 r.p.m
Machining Capacity: Medium Duty
Max. Weight of Workpiece(kg): 200
Spindle Bore(mm): 56
Width of bed (mm): 460 mm
Spindle Motor Power(kW): 7.5
No. of Spindles: Single
Max. Turned Length (mm): 500
Number of Axes: 3
Travel (X Axis)(mm): 250 mm
Travel (Z Axis)(mm): 530 mm
Positioning Accuracy (mm): 0.001
Repeatability (X/Y/Z) (mm): 0.001
Model Number: CK36
Voltage: 380V
Tool Post Stations: 8
Weight (KG): 2550
Warranty: 2 years
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Key Selling Points: High-accuracy
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Gear, PLC, Gearbox
CNC or Not: CNC
Automatic Grade: Automatic
Power(W): 7.5KW/5.5KW
Max. Swing Diameter: 450/420mm
Power (kW): 5.5/7.5
Informations de base
Model Number: CK36
Conditions de paiement et expédition
Packaging Details: in wooden case
Supply Ability: 30 Set/Sets per Month
Description de produit

Product Description

CK36L slant bed CNC lathe directly from factory

Features:
1. Mini lathe cnc machine for slant bed 45 degree.
2. X/Z axis for Taiwan precision ballscrew and Taiwan linear guideway.
3. GSK,Siemens and Fanuc CNC controller for choices.
Model
CK36L
Max. swing over bed
φ360mm
Max. swing over carriage
φ210mm
Max. cutting legth
500/750mm
Rail width
284mm
Spindle nose
A2-5,A2-6
Spindle bore
φ56mm,(62mm)
Taper of spindle bore
1:20
Chuck
6" , ( 8")
Range of spindle speed
150-4200rpm
X axis travel
210mm
Z axis travel
500/750mm
X/Z rapid speed
20/20m/min
Hydraulic turret
8
Max. section of tool
20*20mm
Stroke of tailstock sleeve
80mm
Diameter/ Hole of tailstock sleeve
φ60mm/MT4
Main motor power
5.5KW/7.5KW
Coolant pump power
370W
Overall dimensions L*W*H
2630/2910*1550*1750mm
Packing size L*W*H
2830/3130*1750*2150mm
N.W/G.W
2700KG/3000KG
Standard Accessories
· Spindle unit · Pneumatic or hytraulic chuck · AC servo motor · Hydraulic turret · Auto lubration coolant system
Optional Accessories
· With milling or drilling power head · Automatic chip removal
