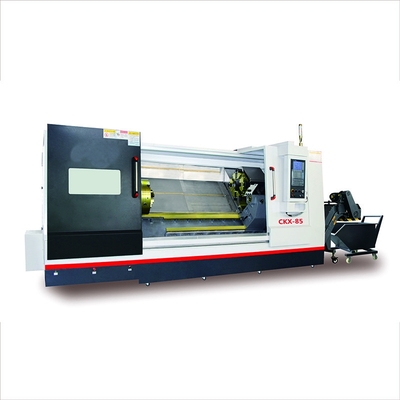

Building Material Stores Heavy Duty CNC Slope Bed Lathe Machine CNC Lathe Horizontal Machining Center

1.0 Sets
MOQ
Building Material Stores Heavy Duty CNC Slope Bed Lathe Machine CNC Lathe Horizontal Machining Center
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Type: Horizontal
Max. Length of Workpiece (mm): 3000
Structure: Slant Bed Lathe
Max. Spindle Speed (r.p.m): 3000 r.p.m
Machining Capacity: Heavy Duty
Max. Weight of Workpiece(kg): 8000
Spindle Bore(mm): 87
Width of bed (mm): 630 mm
Spindle Motor Power(kW): 11
No. of Spindles: Twin
Max. Turned Length (mm): 2750
Number of Axes: 2
Travel (X Axis)(mm): 325 mm
Travel (Z Axis)(mm): 3000 mm
Positioning Accuracy (mm): ±0.01
Repeatability (X/Y/Z) (mm): ±0.006
Voltage: 220/380/415/440V
CNC Control System: Siemens
Toolpost Brand: TAIWAN
Tool Post Stations: 4
Weight (KG): 12000
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Key Selling Points: Long Service Life
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
CNC or Not: CNC
After-sales Service Provided: Engineers available to service machinery overseas
machine tools: lathe
lathe: horizontal lathe
use: metal cutting
Max. Swing Diameter: 1000mm
Max. Swing Diameter (mm): 750mm
Power (kW): 11
Name: cnc slant bed lathe machine cnc lathe turning machining center
Informations de base
Conditions de paiement et expédition
Packaging Details: plywood case
Supply Ability: 100 Set/Sets per Month
Description de produit
Advantage

CNC Slant Bed Lathe Main features:

1. We have our own foundry,we made castings by ourselves,you can come to see castings and machines at the same time!


2. Mechanical and electrical integration design, compact structure, reasonable layout, beautiful appearance. .


3. It adopts 45° slant bed and rectangular plastic coating guide rail, fully sealed/semi-closed protection device, automatic right chip discharge, power hydraulic chuck, three-color light, and automatic lubrication system.


4. 8-12 position hydraulic turret, easy machining for complex parts!


5. Wide product range:Conventional horizontal lathe,cnc horizontal lathe,heavy duty horizontal lathe 100T,slant bed lathe,single column and double column vertical lathes.

Name
CKX-63
unit
Processing range
swing over bed
630
mm
Maximum turning diameter of saddle
460
mm
Spindle
Spindle model
A2-11
GB/T5900.1
Spindle speed
130-1300
rpm
Main motor power
11
KW
tool turret
Tool capacity
12

Turning tool body dimensions
25*25
mm
Maximum boring tool diameter
ψ40
mm
Machine precision
Repeat positioning accuracy (x-axis)
0.005
mm
Repeat positioning accuracy (Z-axis)
0.01
mm

Weight
9000
Kg

Other
We also have many other model machines, with different specifications and configurations.
Contact us and we will recommend machine for you according to detailed requirement.
Detailed Images


Structure and cinfiguration features

Tool turret

Machine can be equipped with electricl turret , hydraulic turret or power turret can be 12 position .

Chuck

Optional hydraulic chuck , easy to install , high production efficiency , safe and reliable , long service life .

Coolant , Chip removal systm

High power cooling pump to promise a good cooling methood for the work pieces. Chain plate chip removal method .

Spindle

Integral gear box type spindle unit , high rigidity structure ,suitable for heavy-duty machining , 3-block variable frequency speed regulation , in-block electrodeless , can realize constant line speed turning in the block.

Full seal protection

Full sealed protection system to safeguard the operatorand prevent the cooling liquid leakage . A safety lock canalso be provided accord-ing to customer's request

Tailstock

Hydraulic tailstock with good rigidity , and anti-vibration abilityIt has convenient guide drag mechanism.

Electric control device

User can choos SIEMENS, FANUC , GSK system

Leadscrew

Adopt precision heavy duty ball screw , the screw is in the middle ,effectively eliminate crawling , strict assembly process requirements .ensure good dynamic characteristics , stability , accuracy and reliability

Spindle oil Cooling

Prevent spindle center deviation or thermal deformationof CNC machine tool , stabilize machine tool accuracy andextend machine tool service life
Company Profile
Main Products
Our comapny specializes in researching,manufacturing and selling precision machines. Ourproducts include metal cutting machines,metal forging machines,special EDM machines,and complete set of machine for metallurgy industry,coving 14kinds of machines,such as vertical CNC maching centers,horizontal CNC machining centers,CNC planer-type(gantry-type)machining centers,floor type boring and milling machining centers,turning lathes series,grinding machine series,plate shearing series,press brake series,plate rolling series,press machine series,EDM machine series,deep holo processing series,pipe production lines,slitting line,steel coil uncoiler andleveling line,nail making machine, etc.

Main Market
Taizhou Hitech NC Machine Tool Co.,Ltd has build long-term and close cooperation relationships with many foreign friends,covering more than 20 countries,and we are looking forward to more cooperations with friends all over the world and hope our machines can help more friends in their local industry and business market development.

Service and Quality Promise
We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our best to complete each detail well and offer solid technical service and good service to our customers.
FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer of slant bed lathe machines.Welcome to visit us!

Q:What payment terms do you accept?
A:We are flexible on payment terms,such as T/T,L/C,please contact us for details!

Q:What information do you need before making quotation?

A:Maximum workpiece length,diameter and weight.

Q:What should I do to start a new business in lathe machine area?
A:Please contact us immediately,we provide free pre-sales consultant service.

Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 40 years.Our lathe machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey,Australia,USA and etc.

You can get higher quality product & better professional service from Hitech with same price.


Q:I`m worried about after-sales service!

A:Warranty is one year.

Any parts damaged during warranty will be replaced for free!

We provide spare parts for life time at cost price.

Electrical parts such as boards and drives,we`ll provide them for life time as well at cost price.

Our engineers are available to service overseas!Sales are online 24*7!
