Construction works   stainless steel price reinforcement bar bender machine machinery GW42D-1

1.0 Pieces
MOQ
Construction works   stainless steel price reinforcement bar bender machine machinery GW42D-1
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor
Material / Metal Processed: steel bar
Automation: Manual
Year: 2022
Weight (KG): 410
Key Selling Points: Long Service Life
Warranty: 1 Year
Motor Power (kW): 3
Applicable Industries: Construction works
Showroom Location: Philippines, Indonesia, Pakistan, India, Russia, Argentina, UAE, Algeria, Romania, Bangladesh, Ukraine, Uzbekistan
Extra Services: Heat Treating
Certification: ce
Motor Power: 3.0 kw-4P
Opeartion: Manual
Voltage: 220V - 380V
Frequency: 50Hz - 60hz
Weight: 320 Kg.
External Dimensions L*W*H: 810*760*860 mm
CE Certification: CE Certificate 2006/42/EC
Power: Motor
Informations de base
Certification: ce, CE Certificate 2006/42/EC
Conditions de paiement et expédition
Packaging Details: Iron pallet
Supply Ability: 500 Piece/Pieces per Month
Description de produit

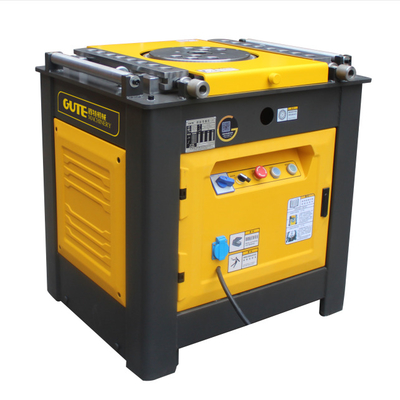

Automatic bending machine ( Manual ) 42mm

---MAIN FEATURE:

MOTOR TYPE: Automatic BRAKE MOTOR

GEAR BOX: CAST STEEL INSIDE GEAR: C45 STEEL

GEAR SHAFT: C45 STEEL WORKING DISK: C45 STEEL

STOP GAUGE: C45 STEEL PILE HEAD: CR 40 STEEL

EXTERNAL CASE: Q235

---PRODUCT DESCRIPTION

• GW42D adopts the FULLY ENCLOSED GEAR BOX separated from the working disk for NO DISTORTIONS even under the condition of heavy loads and NO OIL LEAKING while lifting the machine.

• GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE, PILE HEAD and PILE HEADS are made of high quality ALLOY STEEL with proper HEAT TREATMENT (quenching /tempering/high frequency), and 3mm thick external case to ensure high performances also under heavy loads and LONG WORKING LIFE.

• DUST PROOF BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.

• INSERT-PIN TYPE disk and MOVABLE SADDLES for a precise adjusting of the bending angle.

• CE Certification (2006/42/EC-2006/95/EC)

Worry-saving:

The main components last for 10 years, and main wear parts can last for 3-year, which almost cost you nothing for maintenance.

Time-Saving:

The international advanced structure ensures the fastest bending speed.

---TECHNICAL DATA:

BENDING CAPACITY 6-42 mm (ob ≤450N/mm2) 6-36 mm (ob ≤650N/mm2)
OPERATION Automatic Manual
TYPE OF MOTOR YEJ 100L2-4 (Brake motor) Y100L2-4
MOTOR POWER 3 KW-4P 3 KW-4P
MOTOR ROTATION SPEED 1420 R/min 1420 R/min
SPEED OF WORKING DISK 12 R/min 12 R/min
NOISE VALUE (1m away) ≤80dB(A) ≤80dB(A)
WEIGHT 374 Kg. 320 Kg.
DIMENSIONS (L*W*H) 810*760*860 mm 810*760*860 mm
UNIT PRICE USD
CERTIFICATION
2006/42/EC - 2006/95/EC
