Aperçu /Produits/tour en bois de commande numérique par ordinateur/Leapion CNC Lathe Multifunctional Wood Round Mold Low Price Wood Copy 1530 Lathe For Stair Wood Column

Leapion CNC Lathe Multifunctional Wood Round Mold Low Price Wood Copy 1530 Lathe For Stair Wood Column

1 Set
MOQ
$3,000.00(1 - 49 Sets) $2,400.00(>=50 Sets)
Prix
Leapion CNC Lathe Multifunctional Wood Round Mold Low Price Wood Copy 1530 Lathe For Stair Wood Column
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Max. Swing Diameter (mm): 300 mm
Max. Length of Workpiece (mm): 1500 mm
Max. Turned Length (mm): 1500 mm
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 1 Year
Core Components: Tool Head, Control System, Guide Rail, Servo Motor, Protection Ring
Voltage: 380V 3PH AC power
Dimension(L*W*H): 2900*1100*1450mm
Weight (KG): 1600
Power (kW): 3.5 - 5.5
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works
Showroom Location: Canada, France, Peru, Mexico, Kyrgyzstan
Product name: CNC Wood Lathe
Material diameter: 20-300mm
Spindle speed: 0-3000r/min
Minimum setting unit: 0.01cm
Rotating spindle: 4KW servo spindle
control system: DSP or Adtech
Motor: Alpha 4KW servo main power motor
Guide rail: HIWIN 25 square rail flange slider
Application: Wood Round Mould
Function: Wood Turning+fluting+cylinder Engraving
Informations de base
Conditions de paiement et expédition
Packaging Details: 1. Outside package: Strong wooden case 2. Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package
Supply Ability: 20 Set/Sets per Month
Description de produit

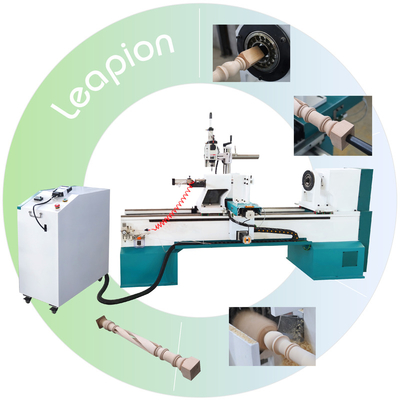

Leapion Multifunctional 1530 CNC Wood Turning Lathe Low Price Wood Copy Lathe for Wood Staircase Column
Such as various staircase column, roman column, general column, table or chair legs, washstand, wooden case, wooden table,baseball bat, car wooden furniture, children' s bed column, etc.
Specification
NAME
PARAMETER
Processing length
200-1500mm (2m and 2.5m specifications can be customized)
Material diameter
20-300mm
Maximum feed rate
2000mm/min
Minimum setting unit
0.01cm
Rotating spindle
4KW servo spindle
Engraving spindle power
3.5kw air-cooled spindle (used for slotting and engraving)
Spindle speed
0-3000r/min
Stepper drive, motor
Research and control YOKA 2811MA, 450B450C motor
Operating Voltage
380V 3PH AC power
working frequency
50Hz
Control System
RichAuto DSP control system
Pneumatic pressure
0.6-0.8Mpa
Products Description
After Sale Service Introduction

What kind of support you can get from Leapion？

1.1 year warranty，Provide a full range of technical support for life.
2.From monday to sunday 9am to 22pm.Experienced technician to guarantee lifetime online support（by whatsapp /skyper /wechat /email）.So there is no need to worry about technical support due to time difference.
3.Support local after-sales service. up to 2021, we have offered onsite to these countries and areas： Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc.
Packing&Shipping

Bare metal packaging size：2900mm*1100mm*1450mm
Fumigation-free packaging size：3050mm*1250mm*1680mm Total weight：1600kg
1.Outside package: Strong wooden case.
2.Inner package: Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package.
Company Introduction

Leapion Company is experts in CNC wood router business since 2007 which is a global manufacturing company producing CNC wood router,wood lathe, laser cuttinging machines, laser marking machines for various applications, such as woodworking furniture, Steel metallurgy, automotive industry, military electronics, machinery manufacturing, hardware tools and other industries.
We have a large cnc router equipment production workshop,as well as our own painting room,metal plate manufacturing workroom.
At the same time, a global service network centered on China has been established, and overseas responsible agencies covering Asia, Europe, North America, South America, Africa, Oceania and other parts of the world have been established, serving more than 120 countries and regions around the world.
Welcome to visit our factory!
CNC Wood Router
ATC CNC Router
Multi-axis CNC Router Machine
Full automatic flatbed CNC router
Knife Cutter & CNC Router with CCD Camear
Laser marking machine
Laser cutting machine
Laser welding machine
Laser cleaning machine
